RAD batteries
Fast charging battery options
Fast input. Big output.
RAD Propulsion provides the full turnkey solution for boatbuilders with batteries, in 21 kWh and 61 kWh sizes, to fit a variety of boat configurations and requirements. The advanced BMS (battery management system) ensures the cells are kept in peak condition, reporting state of charge and cell health through the RADBus system.
Models
RAD 61 kWh battery pack
RAD 21 kWh battery pack
Battery features
Multiple configurations
Up to four battery packs of the same capacity can be configured in parallel.
Battery status
Charge status, range and endurance is able to be displayed on a multifunction display via NMEA2000.
AC charging
RAD can provide a range of AC charging solutions for use with 16 A and 32 A shore power sockets.
Advanced battery management
The advanced BMS (battery management system) ensures the cells are kept in peak condition, reporting state of charge and cell health through the RADBus system.

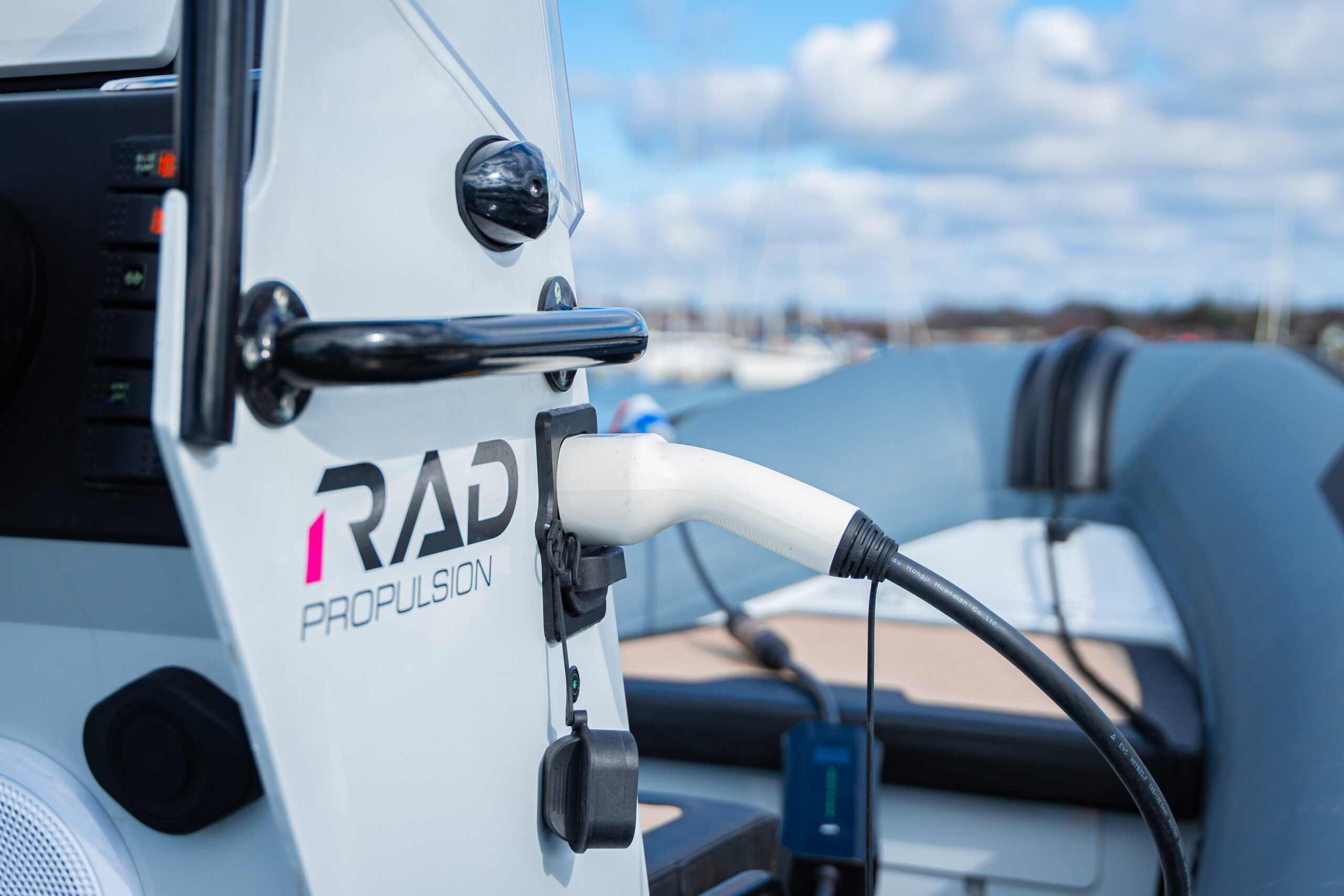

DC fast charging
RAD batteries are fully compatible with CCS2 fast chargers and can be configured to your boat.
RAD 61 kWh battery specification
Capacity
61.2 kWh
Nominal voltage
390 Vdc
Discharge rate
55 kW continuous (280 kW peak)
Assumes liquid cooling (to keel cooler, sea water heat exchanger or radiator)
CCS charging rate
70 kW
Dimensions
Length: 2147 mm Width: 372 mm Height: 268 mm
Weight
358 kg
Ingress protection
IP67
Operating temperature range
-10°c to 55°c
RAD 21 kWh battery specification
Capacity
21 kWh
Nominal voltage
390 Vdc
Discharge rate
40 kW continuous (80 kW peak)
Assumes liquid cooling (to keel cooler, sea water heat exchanger or radiator)
CCS charging rate
21 kW
Dimensions
Length: 833 mm Width: 377 mm Height: 333 mm
Weight
130 kg
Ingress protection
IP67
Operating temperature range
-10°c to 55°c
